Private and Public Charging Stations
eBOX charges electric vehicles in private, semi-public and, in full compliance with calibration laws, also in public areas – securely and reliably.
Through the integrated dynamic load management system, charging currents can be determined by phase without connection to a backend system. Therefore, eBOX avoids load peaks, unbalanced load as well as exeeding overall charging current at the output.

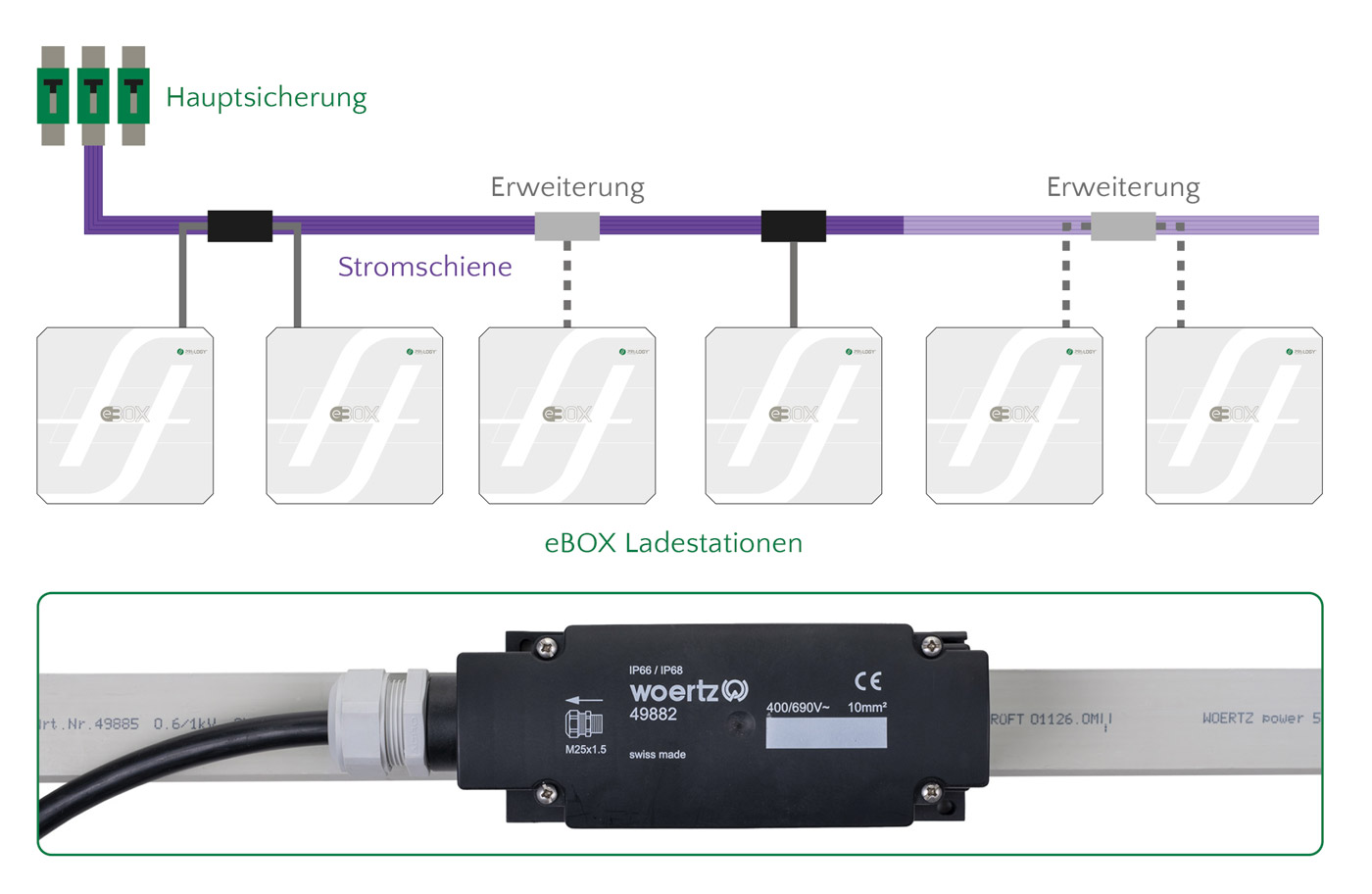

By means of a unique pluggable connection cable system, eBOX stations can be swiftly added to only one

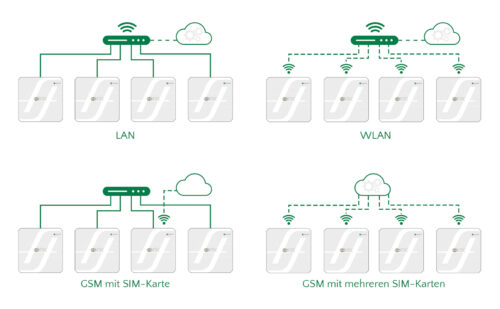

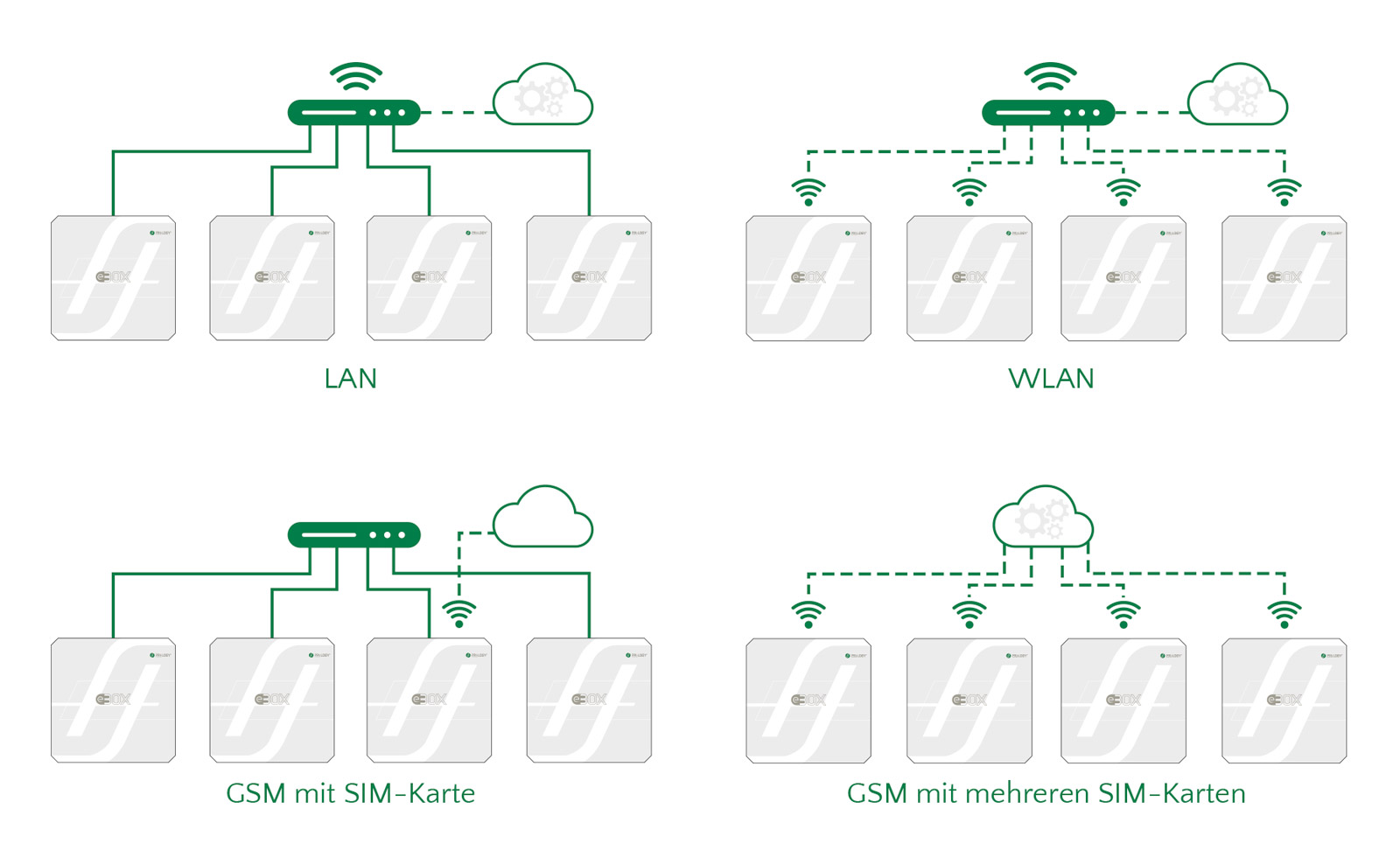

Communication between up to 250 possible charging points is based on LAN or WLAN. Together with a backend system, eBOX stations can also communicate via GSM.

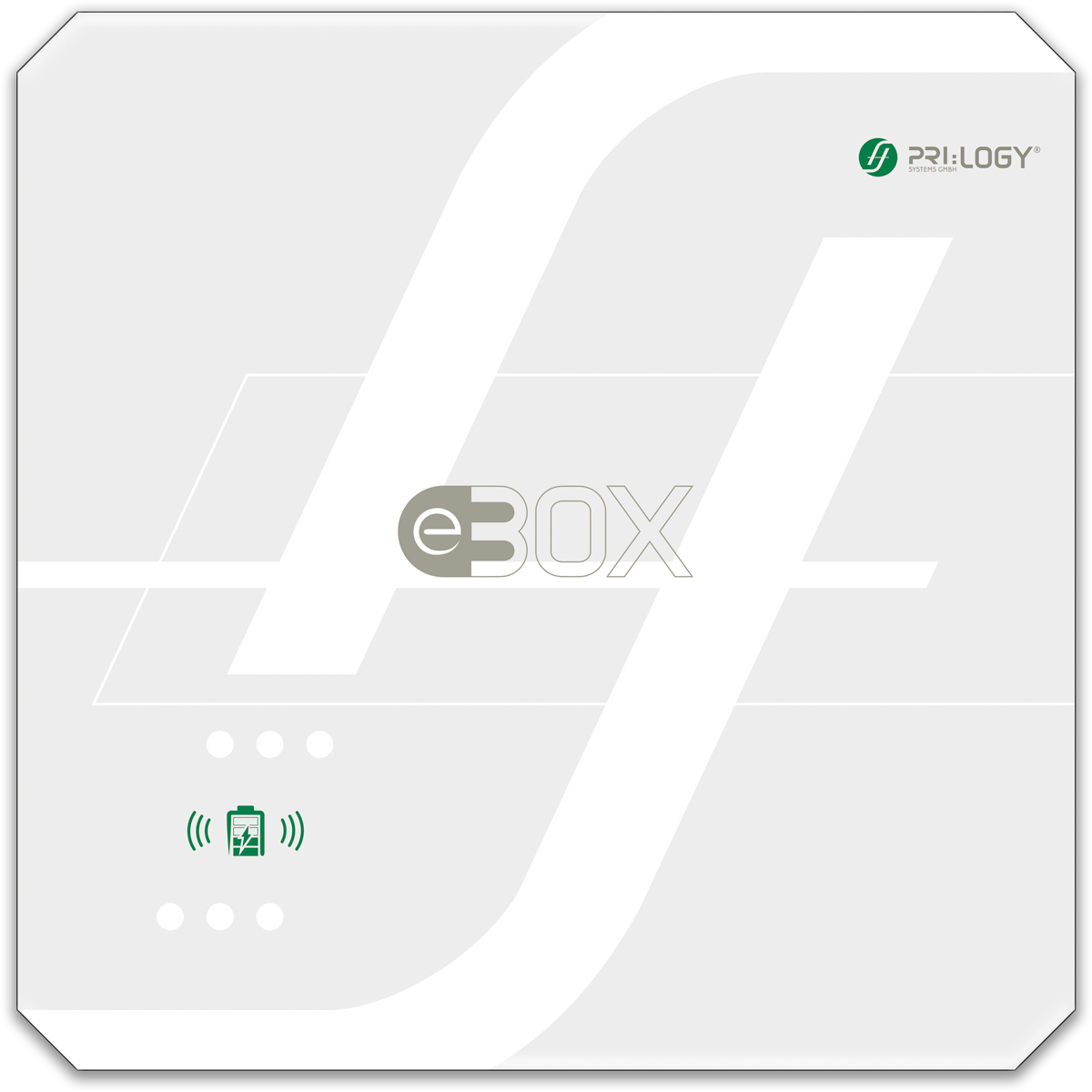

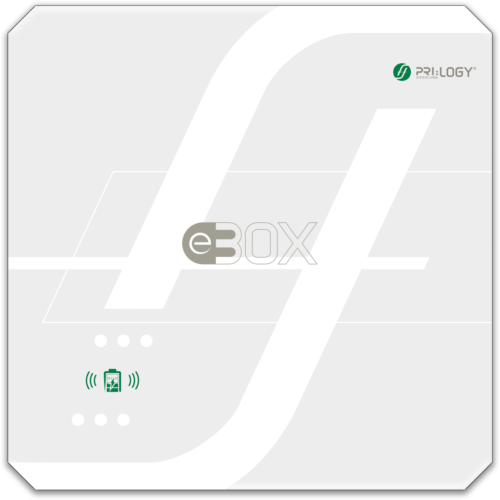

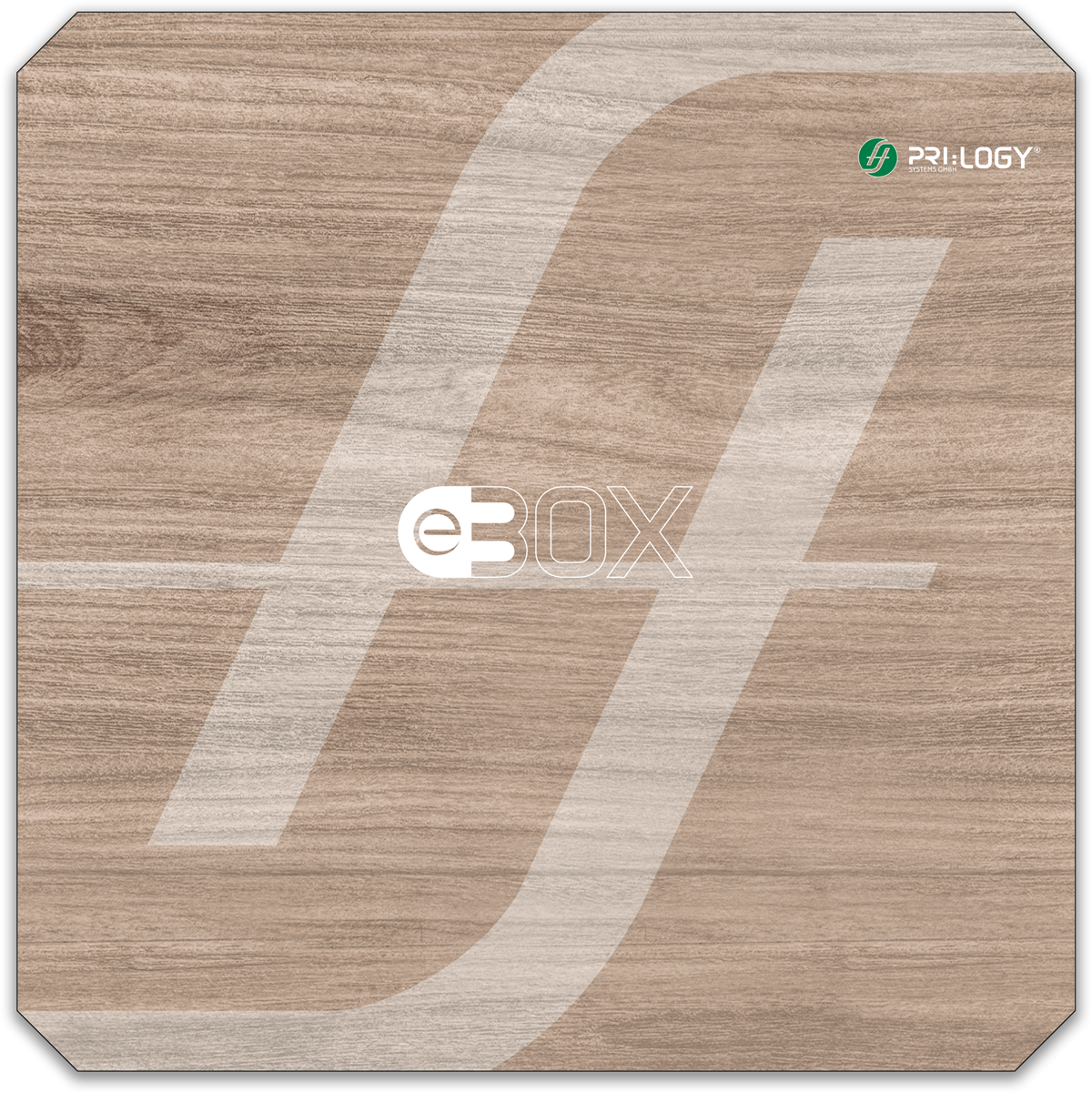

eBOX allows individual design of its fronts, where the fronts may also feature additional functionalities such as RFID or integrated payment terminals (eBOX PRI:PAY).
Supports easy plug & play start-up and charging.

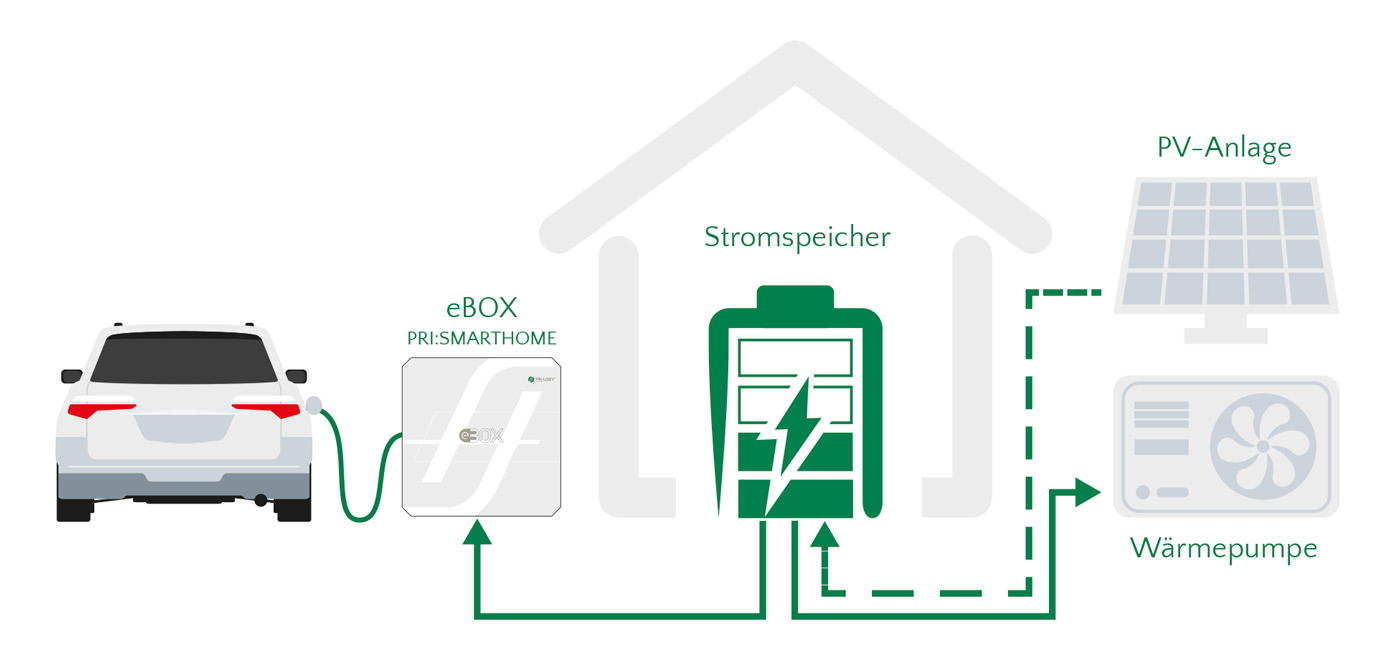

Supports wallbox supply by photovoltaic energy surplus at home.
Provides complete energy management with app control in addition to eBOX PRI:HOME.
Supports recording and clearing of all charging processes for typical areas such as public parking, semi-public or commercial parking spaces or garages of companies, hotels, restaurants etc. Additionally, a 4G modem can be integrated on option.

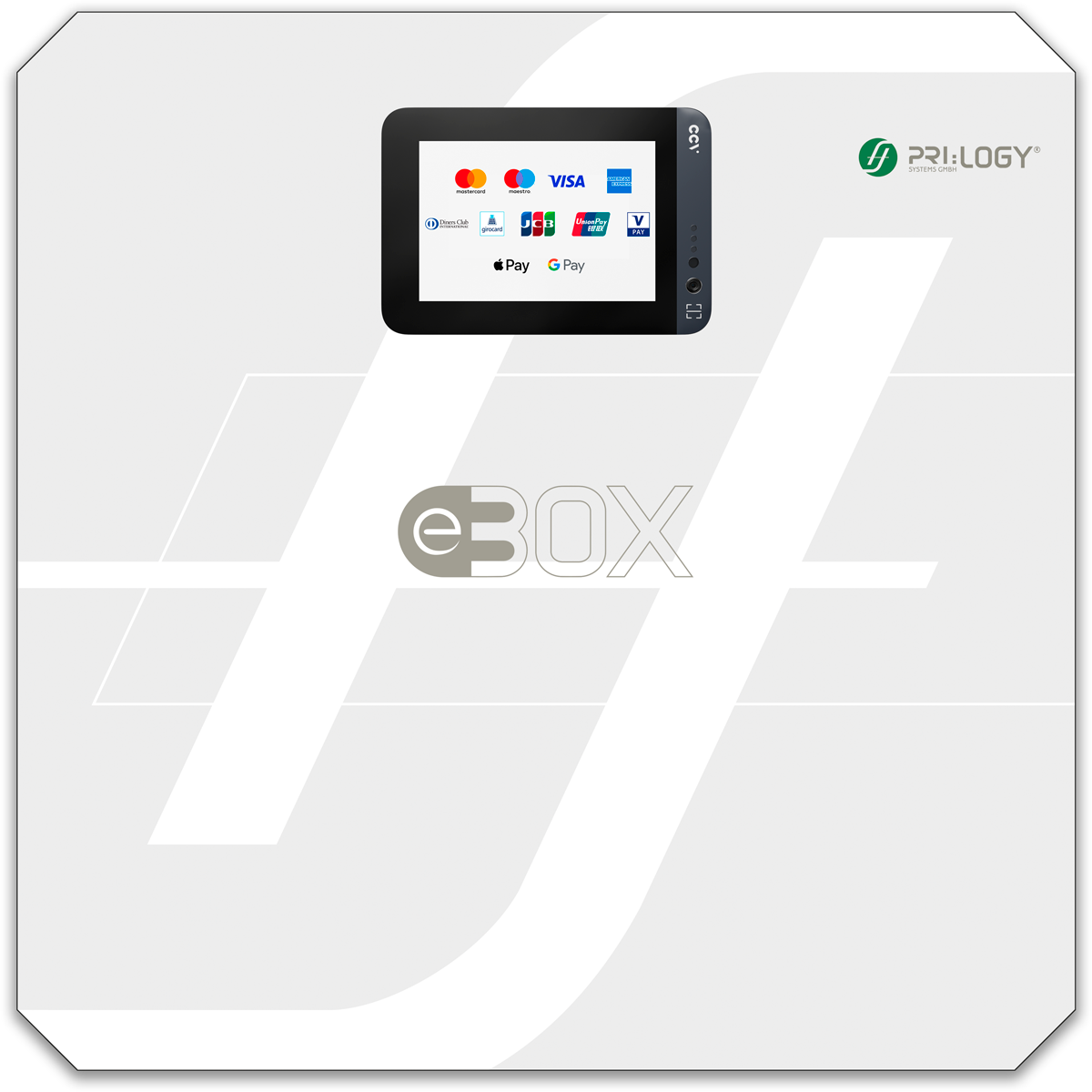

Allows contactless payment with PIN as well as barcode or QR code scan. eBOX PRI:PAY generates electronic receipts for full tranperency of sessions and transactions. Electronic invoices are displayed on screen and can be scanned by mobile phones.
|Connection standard||IEC 61851-1 Mode 3||IEC 61851-1 Mode 3||IEC 61851-1 Mode 3||IEC 61851-1 Mode 3||IEC 61851-1 Mode 3|
|Maximum connected load||22 kW||22 kW||22 kW||22 kW||22 kW|
|Charging capacity||6 - 32 A||6 - 32 A||6 - 32 A||6 - 32 A||6 - 32 A|
|Load management||Load management||Load management||Complete energy management system with app control for homes||Load management||Load management|
|Electricity meter||MID meter (calibration law- conform, optional)||MID meter (calibration law- conform, optional)||MID meter (calibration law- conform, optional)||MID meter (optional)||-|
|Charging authorization||Payment terminal||RFID (key lock on option)||RFID (key lock on option)||RFID (key lock on option)||Key lock on option|
|Integrated temperature sensor||Yes||Yes||Yes||Yes||-|
|OCPP||OCPP 1.5/1.6 compliant with JSON, SOAP||OCPP 1.5/1.6 compliant with JSON, SOAP||-||-||-|
|4G modem||Yes (optional)||Yes (optional)||-||-||-|
