Next-Generation Transformer Substation
Benefits
The innovation timber composite system reduces CO2, emissions by up to 77% compared with conventional concrete substations.
- 50% lighter than conventional concrete solutions

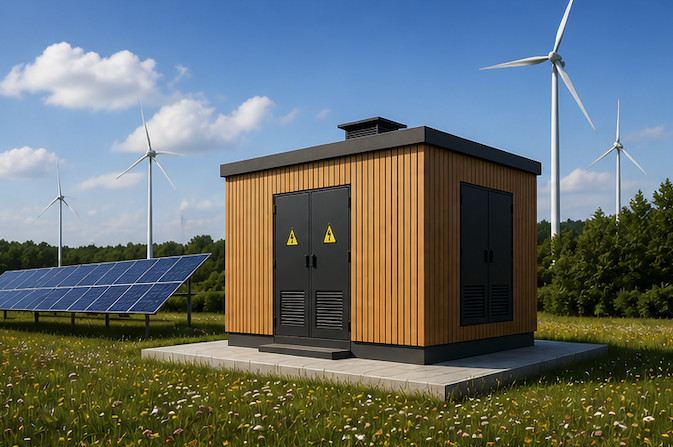

- The high-quality larch facade provides a modern, natural appearance and exceptional durability
- Thanks to the modular design, maintenance and technical work can be carried out particularly efficiently
- Technical equipment can be replaced within one day
- The substations are robust, weather-resistant and designed for long-term use
Versatile Applications
The transformer substations are suitable for a wide range of applications in modern energy supply:

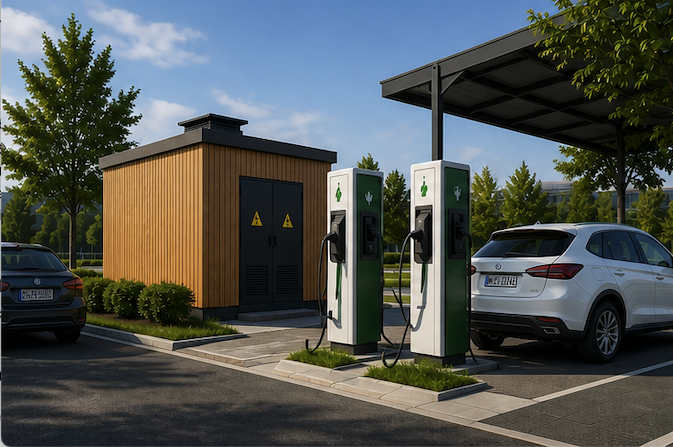

- Charging infrastructure and e-mobility
- Commercial and industrial applications
- Future-focused infrastructure projects
Technical Highlights
- Rated power: 1,000 – 3150 kVA
- Medium voltage: 10 – 20 kV
- Low voltage: 400 – 800 V
- Short-circuit current (LV): 30 – 150 kA
- Standard: IEC 62271-202
- SF-free switchgear
- Type-tested pressure relief system
- Modular design with a separate base
- Separate switchgear and transformer rooms
Project Implementation
- We support you from the initial planning stage through to the successful completion of your project.
- We provide individual advice to help you select the right transformer substation.
- We assist you with planning, permits and grid integration.
- We coordinate all activities between the manufacturer, planning team and implementation partners.
- Thanks to optimized processes, you benefit from short lead times and rapid availability.
