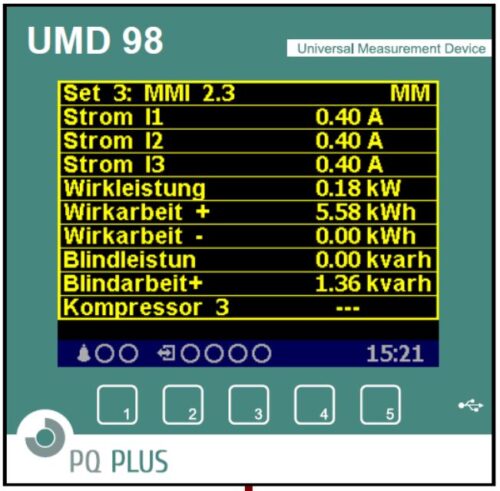

- Multifunctional measuring instruments

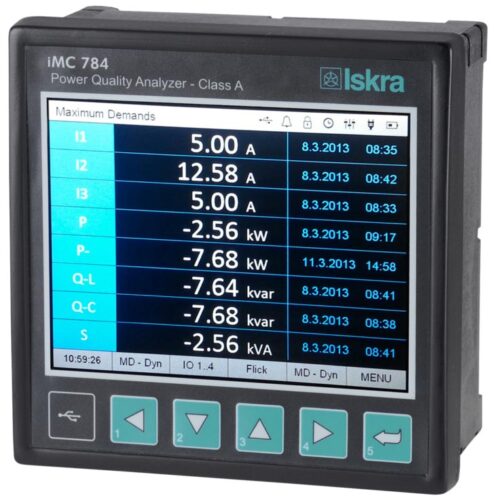

- Power meters, power quality analysers according to EN 50160

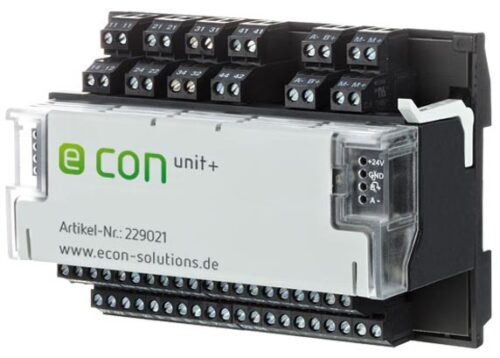

- Data logging
- Network gateways
Load Control and Energy Management Systems

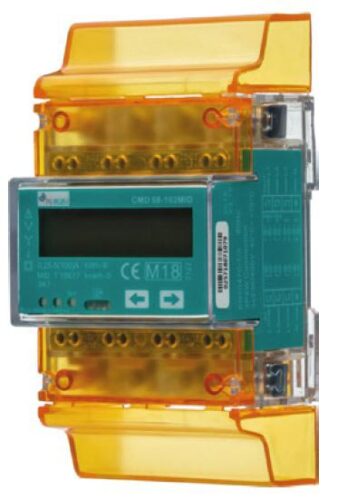

- Energy meters with MID conformity
- Energy management systems according to EN ISO 50001
- Load control management systems
- Web gateways

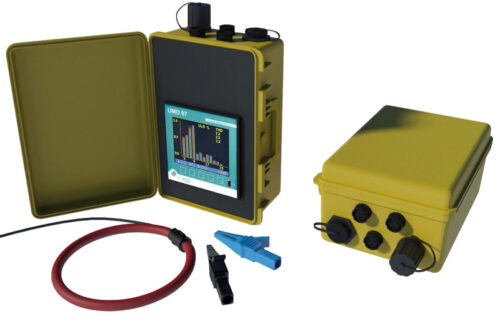

- Mobile measurement boxes
- Visualisation and peak load optimisation software
Current and Voltage Transformers
- Current transformers for industries and billing purposes
- Voltage transformers for industries and billing purposes
- Rogowski coils
- Medium voltage sensors
- Adjustable resistors for current and voltage transformers
- Current and voltage transformers
- Split-core current transformers
- Tube current transformers
- Current transformers - overview
- Protection current transformers
- Current transformer with spring-type terminals
- Current transformers for consumption calculation
- PU-encapsulated current transformers
- Current transformers with integrated transducers
- Summation current transformers
- Winding current transfromers
- Clip-on current transformers
- Accessories
- Plug-on current transformers
- Three-phase current transformers
Operating Hours and Pulse Counters
- Operating hours counters for AC and DC applications
- Pulse counters for AC and DC applications
PRI:CHARGE Energy Management and Charging Management

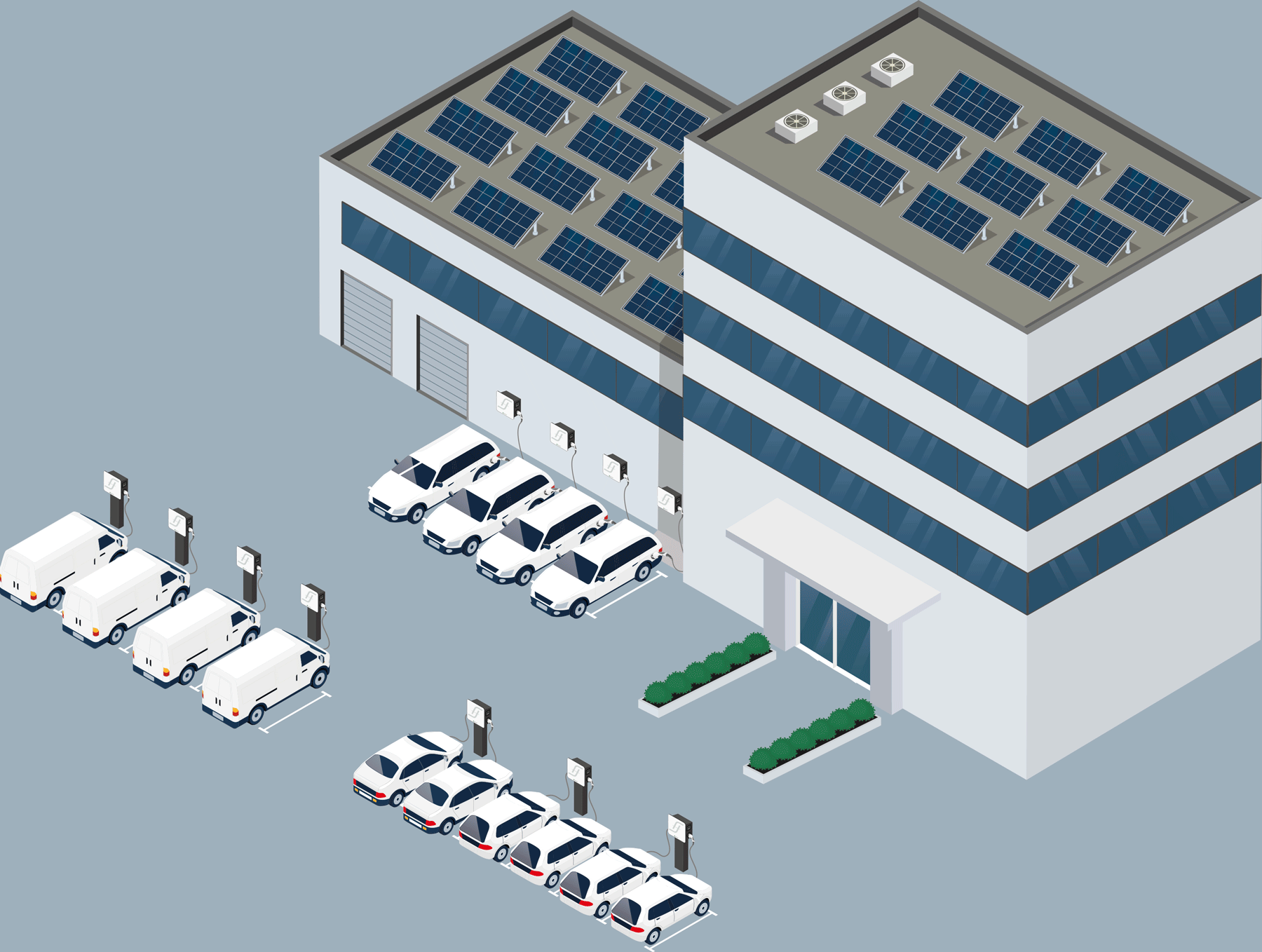

Charging and Energy Mangement
- Flexible load control at highest efficiency
- Determination of priorities as such as preferred charging of own fleet or specific vehicles
- Integration of all energy components in a building such as photovoltaics, batteries, heat pumps, heating rods etc.
Clearing System
- Automated and powerful clearing
- Clearing of own vehicle fleet as well as management of chargings by customers
- Contactless payment via cash or credit cards
- Designed for public charging points
- Detailed performance analyses

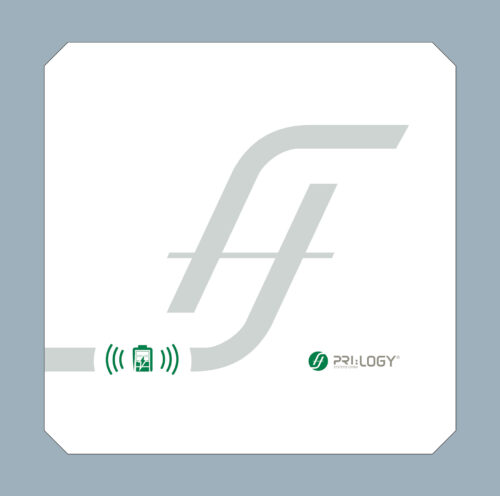

PRI:CHARGER Wallbox Series
Plug & Charge
PRI:CHARGER wallboxes, which can be scaled in order to meet different application requirements, perform safe and reliable charging of electric vehicles in private, semi-public and also in public areas.
Beside authorisation via RFID, PRI:CHARGER allows implementation of a payment terminal for cashless and also contactless payment with major bank and credit cards.
The wallboxes support Plug & Charge as well as easy and swift setup. Furthermore, excess electricity generated by a local photovoltaic station can be utilised for charging.
PRI:CHARGER facilitates memorisation and accounting of all charging operations for typical application areas such as public parking lots, semi-public or commercial parking areas of companies, hotels, restaurants and many more. A 4G modem can be implemented as an option.
The front sides of the wallboxes can be individually designed.
In Compliance with Calibration Laws
Together with a backend system, PRI:CHARGER stations support independent public accounting of the charging power. All relevant metering data is displayed at the wallbox.
Integrated Load Mangement
Through the integrated dynamic load management system, which is fully available even without connection to a backend, charging currents can be determined by phase. Therefore, load peaks, unbalanced load as well as exceeding overall charging current at the output can be avoided.
Easy Connection and Setup of a Conductor Rail System
PRI:CHARGER wallboxes can be wired to an extendable conductor rail system with up to 200 stations. The integrated load management system provides a safe charging infrastructure.
Plug & Charge
The future-proof PRI:CHARGER wallboxes are prepared for Plug & Charge. Together with a backend and an electric vehicle that both support Plug & Charge, the charging process automatically starts after connecting the vehicle to the wallbox without additional authentication steps.
Integrated Fault Current Protection
ZFor higher safety levels, PRI:CHARGER wallboxes can be equipped with a DC fault current sensor. Furthermore, this only requires an upstream fault current circuit breaker of type A, which can be installed into the wallbox as an option.

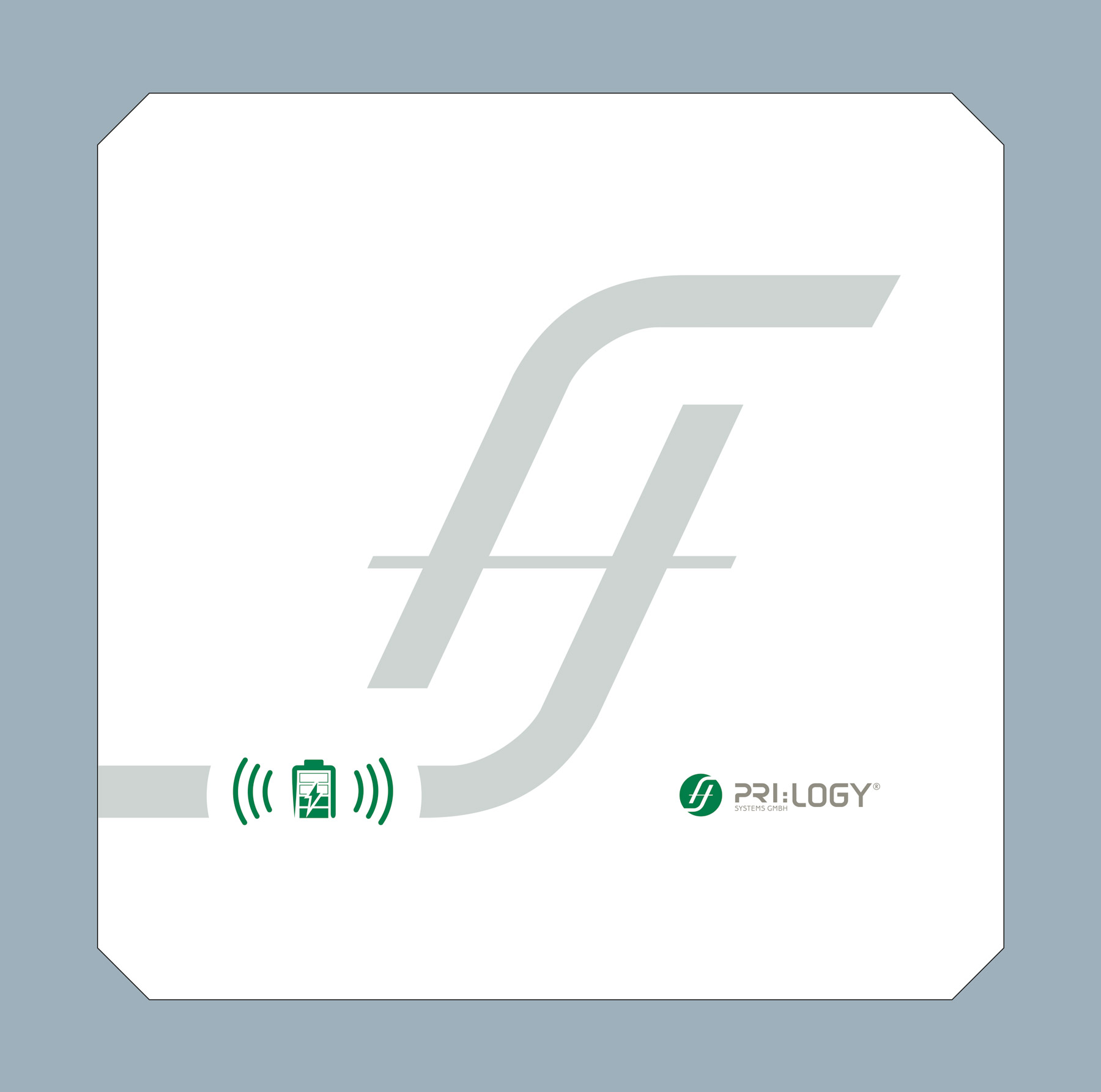

RFID Authentication
By RFID authentication, electric vehicles can only be charged by authorised users, who are registered in the backend or locally.
Charging can be cleared with a RFID charging card or with a RFID tag.

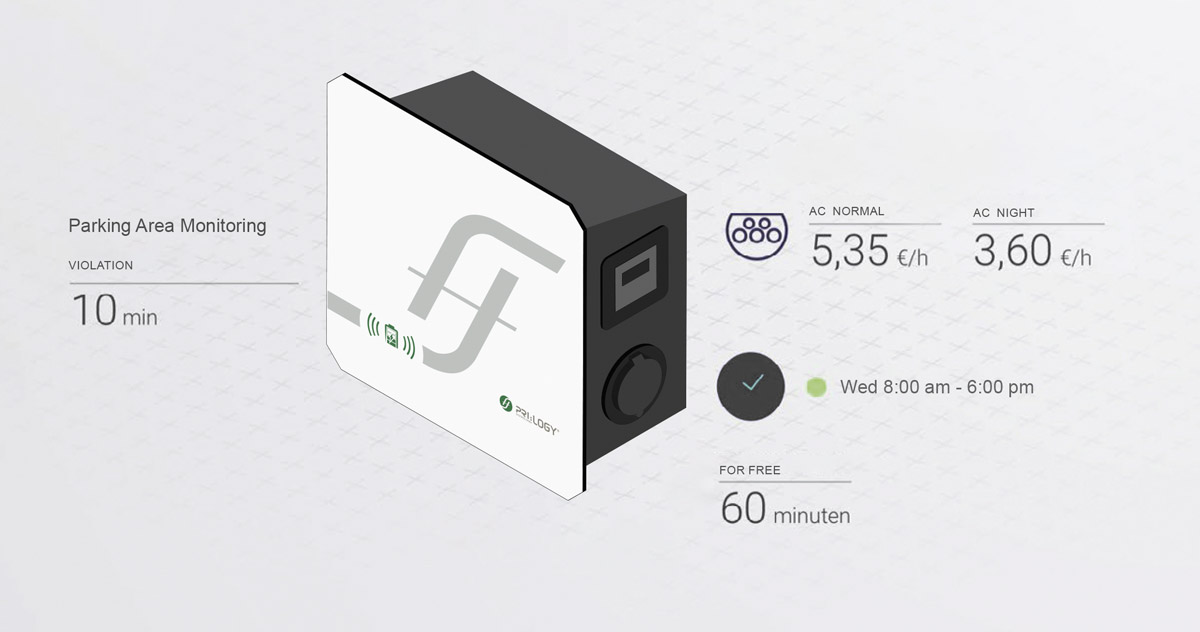

Payment Terminal
In addition to RFID, PRI:CHARGER allows integration of a payment terminal at the front side for easy accounting of charging events featuring a dynamic tariff systems (price per kilowatt hour, starting/blocking fees etc.) via web interface. OCPP is not required here.
Payment is achieved with major bank and credit cards and can also be processed contactless via NFC (Apple Pay, Google Pay etc.).
Extensive Communiation
Communication between PRI:CHARGER stations as well as between PRI:CHARGER stations and backend system can be performed via LAN, WLAN and GSM, with one or multiple SIM cards.
Energy Management
PRI:CHARGER may be integrated into Home Energy Management systems (HEM), where power consumption of electric vehicles can be synchronised with power generation by a local photovoltaic station. Furthermore, the system supports blackout protection. PRI:CHARGER supports communication protocols such as EEBus, SEMP, SunSpec Modbus and Modbus TCP.

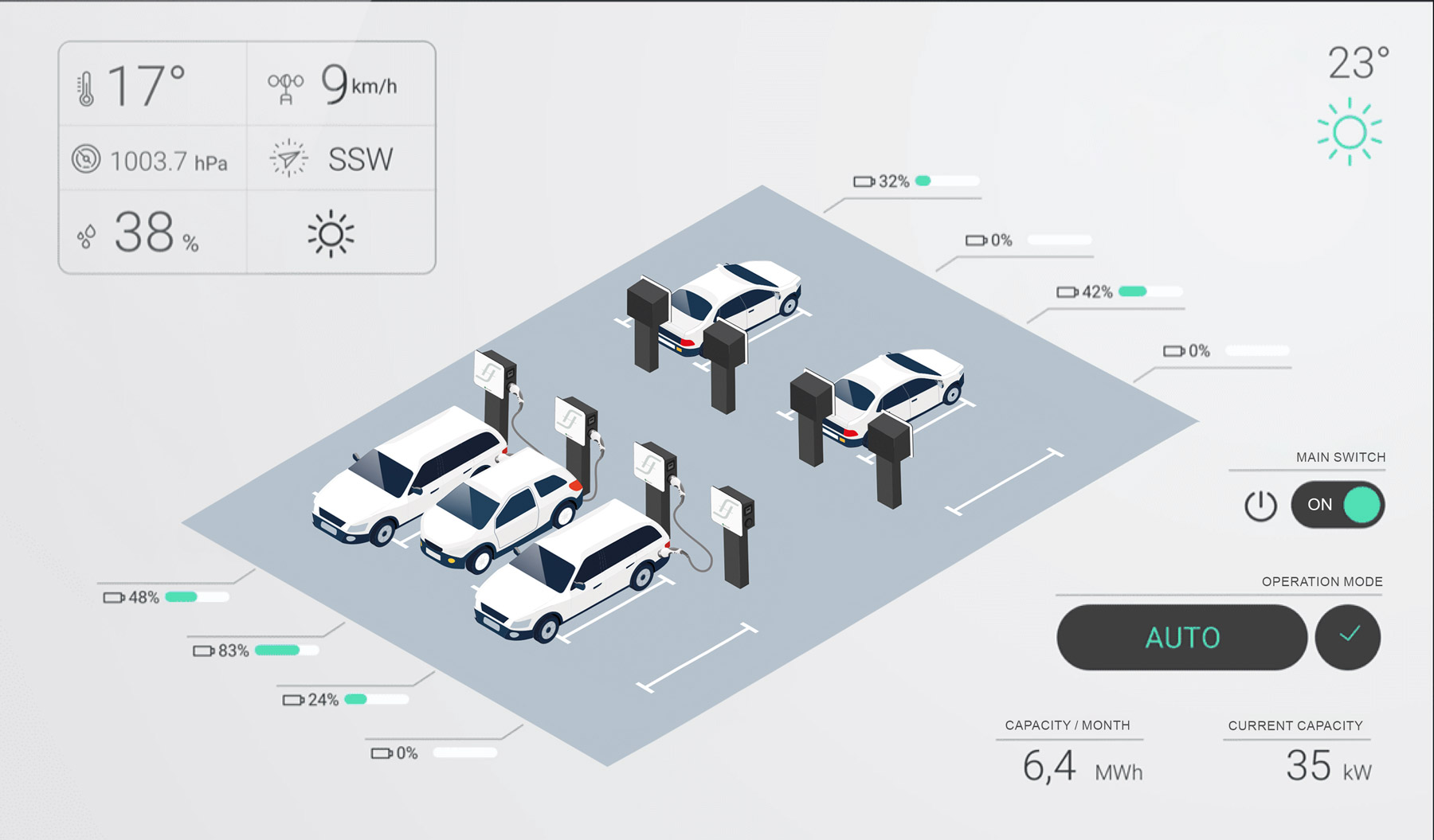

A mobile app provides an optimal overview of the PRI:CHARGER wallbox and the charging process. In addition, it allows multiple specific charging settings.
| GENERAL SPECIFICATIONS | |
| Max. charging capacity | 22 kW AC |
| Input | 3P 400V 32A (22 kW) |
| General characteristics | Configurable master and slave operation ● Integrable in one- or three-phase grids up to 3 x 32 A ● Integrated emergency opener for drive control (lock / unlock) ● Internal temperature sensor for reduction of load current, depending on ambient temperature |
| Certifications | IEC 61851-1 Charging System for Electric Vehicles ● IEC 61851-22 EMC ● IEC 62196 Charging Socket ● 2014/35/EU Low Voltage Directive ● 2014/53/EU Radio Equipment Directive (RED) ● 2011/65/EU Restriction of Hazardous Substances (RoHS) |
| Load management | EEBus, SEMP, SunSpec Modbus, Modbus TCP |
| Charging status display | Multi-color LED at device |
| Max. cable diameter | 5 x 10 mm² |
| Dimensions (W x H x D) | 368 mm x 356 mm x 167 mm |
| Weight | 5 kg |
| Protection type | IP54 (suitable for indoor and outdoor installation) |
| Operating range | -20°C to 40°C (without direct sun irradiance) ● 5% to 95% relative humidity, non-condensing ● max. 2000m above sea level |
| ALTERNATING COMPONENTS | STANDARD | OPTIONAL |
| Charging connection | Charging socket Type 2 with automatic locking (IEC/EN 62196) | Mounted loading cable Type 2 (5m) |
| Fault current detection | 6mA (DC) | Integrated RCCB (AC), Fault current circuit breaker type A |
| electricity meter | MID-compliant | Calibration law-compliant |
| Charging clearance | RFID with charging card or tag | Payment terminal CCV IM15 |
| Communication | Power Line Communication (PLC) ISO 15118, LAN, WLAN | GSM (LTE 4G), Open Charge Point OCPP 1.5/1.6 |
| PAYMENT TERMINAL (OPTIONAL) | |
| Display | 3.5 inch IPS full color touchscreen |
| Dimensions (W x H) | 107 mm x 75 mm |
| Functions | Virtual PIN pad, integrated contactless scanner, camera for barcodes and QR codes |
| Protection type | IP65, also between machine and terminal IK09 |

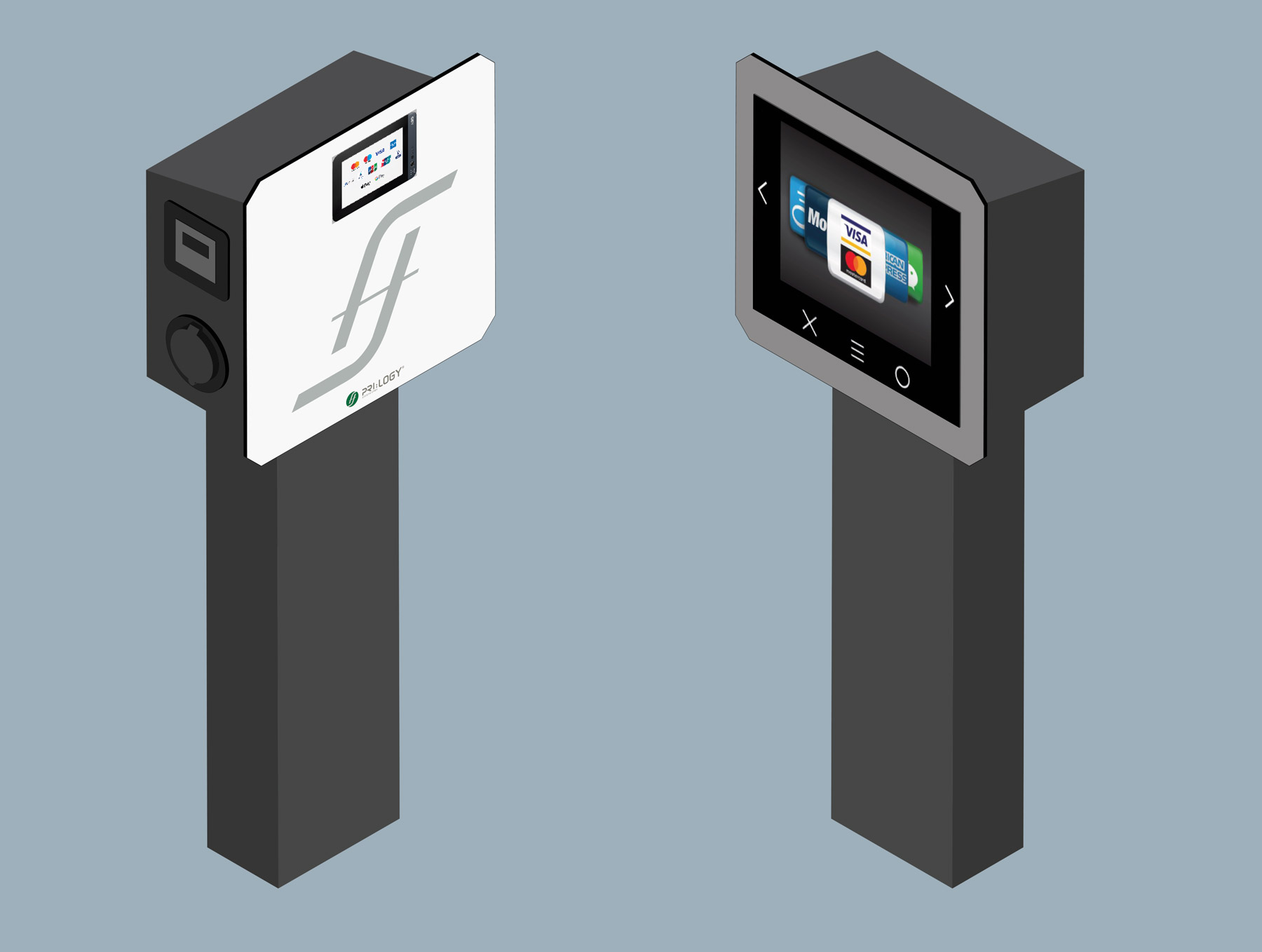

PRI:CHARGER Charging Poles
- Up to 22 kW charging capacity
- Charging controllers according to IEC61851-1 (Ladebetriebsart ISO15118-Kommunikation)
- Smart Grid-conform through OCPP 1.5 and 1.6 (JSON and SOAP)
- Integrated 6 mA DC residual current detection and monitor for applying RCD typ A, no RCD type B necessary
- Integrated emergency release for motor control (interlocking) and monitoring of 12 V supply voltage
- Authorisation via RFID or free charging without authorisation as an option
- Data transfer via GSM, LAN, WLAN
- Integrated temperature sensors for reduction of load current depending on environmental temperatures
Charging Controllers
- Safe and reliable charging of electric vehicles
- Development of charging infrastructures with EMH counters and transperancy software according to calibration laws
- Integrated dynamic load management (DLM)
- Integrated powerline communication (PLC) according to ISO 15118
- Integrated emergency release
- Smart grid-conform
